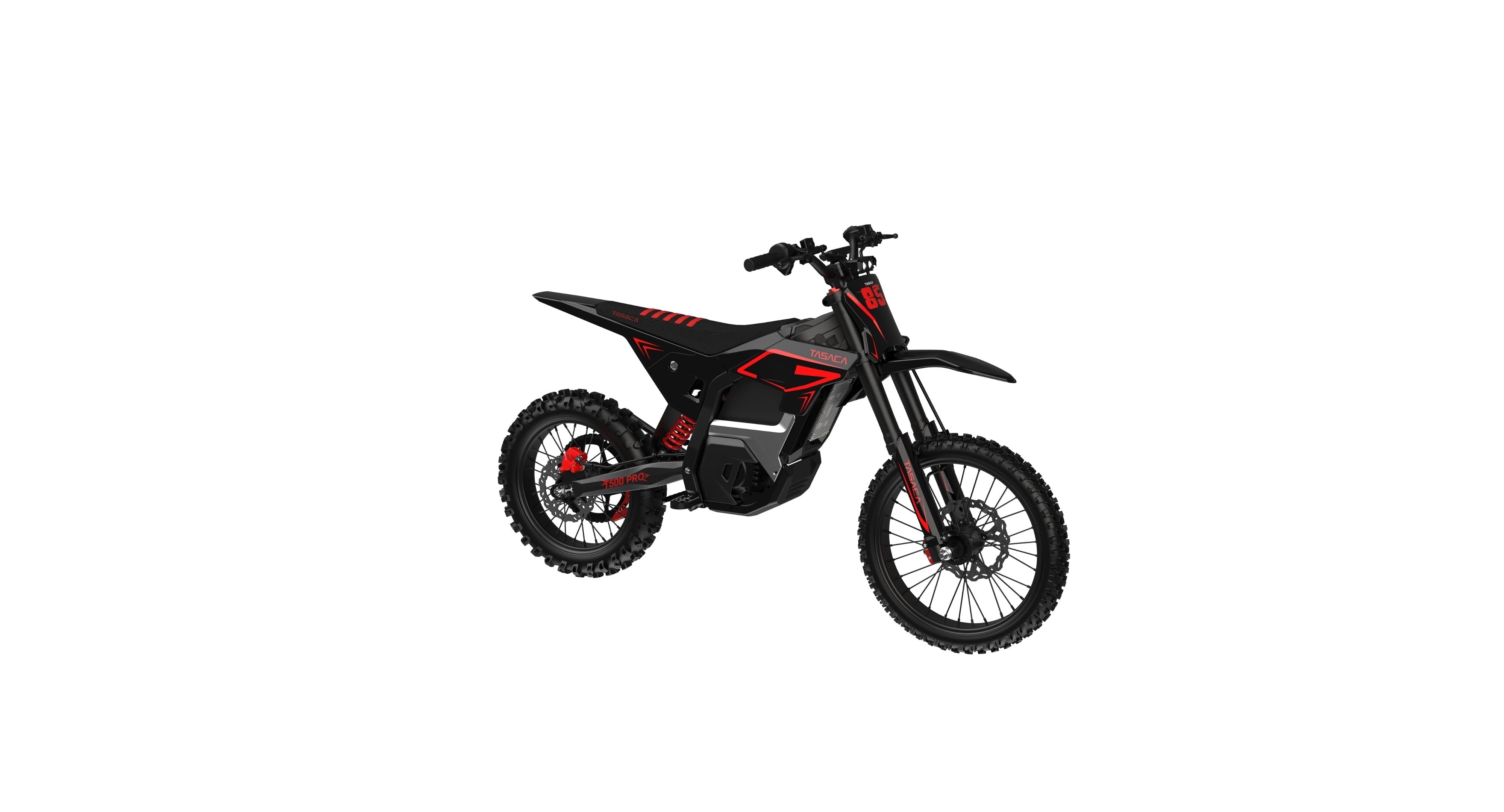

The Complete TASACA Electric Dirt Bike Maintenance & Care Guide

Section 1: Full Component Breakdown of TASACA T500 Series

1.1 Mechanical Chassis & Off-Road Hardware

• Frame: Reinforced aluminum off-road frame with reinforced swingarm mounts to absorb jumps and rocky impacts. All weld points bear maximum load during steep hill climbs.
• Adjustable Hydraulic Suspension (Front Fork + Rear Shock): Dual oil-sealed stanchions to filter mud, sand and debris; critical for jump landings on training tracks and forest trails.
• Wheels & Knobby Off-Road Tires: T500-V58: Front 14” / Rear 12”; T500 Pro larger race wheel setup. Deep treads for mud, gravel and grass; sidewalls vulnerable to rock cuts.
• Cockpit & Controls: Adjustable handlebars, 5-speed throttle mode switch, LCD display, hydraulic brake levers. Constant trail vibration loosens handlebar fasteners.
• Drivetrain Assembly: Heavy-duty off-road chain, reinforced chainring and cassette. Mid-drive motor amplifies torque, accelerating chain wear far more than regular e-bikes.

1.2 Electric Powertrain (The Core of TASACA Off-Road Performance)

1. Mid-Drive Flat Wire Motor


   5500W peak power for T500-V58, upgraded race-spec motor on T500 Pro fully compliant with FIM EX3 Class power limits. Mounted low on the frame for balanced weight distribution. Transmits torque directly to drivetrain, creating extra chain stress. Fully sealed housing but mud can block cooling vents.
2. 52V 30Ah Lithium Battery Pack


   1560Wh integrated frame battery with built-in BMS protection. The most valuable single component on your bike; improper charging/storage drastically cuts cycle life. Waterproof casing but charging ports must stay clear of mud and moisture.
3. Intelligent Controller


   Vehicle brain regulating 5 adjustable speed modes, torque output and thermal protection. Sealed unit mounted away from direct mud splash, but wiring connectors require frequent inspection.

1.3 Control Systems: Brakes & Electrical Interface

• Dual Hydraulic Disc Brakes: High-performance calipers, vented rotors for downhill and jump stopping power. Mud contaminates brake pads easily, causing squealing and reduced grip.
• Throttle & Display Wiring Harness: Low-profile cables routed along the frame; loose connectors from trail vibration trigger error codes or power cutouts.

Section 2: Mid-Drive Motor VS Hub Motor — Maintenance Differences For TASACA Riders

Section 3: Standardized Proactive Maintenance Schedule (Off-Road Mileage & Time Based)

3.1 Pre-Ride 2-Minute ABCD-E Safety Check (Every Single Ride)

3.2 Post-Ride Quick Care (After Every Mud/Dusty Trail)

1. Remove battery and store in dry space if cleaning the bike
2. Wipe motor vents, suspension tubes and battery casing with damp microfiber cloth
3. Brush mud off chain, wipe dry and apply off-road chain lube
4. Blow dirt out of brake calipers with low-pressure air
5. Inspect all wiring connectors for mud buildup

3.3 Weekly Routine Maintenance

• Deep clean drivetrain: Degrease chain, cassette and chainring
• Tighten loose handlebar, seat and axle bolts (vibration loosens fasteners)
• Visually check brake pad thickness (replace below 3mm friction material)
• Wipe battery charging contacts to prevent corrosion

3.4 Monthly Deep Inspection

• Full frame wash (no high-pressure water spray on motor/battery)
• Inspect frame welds, swingarm for cracks or dents
• Spin wheels to check wobble, squeeze spokes for uniform tension
• Test throttle speed modes for smooth power delivery

3.5 Mileage-Based Service Intervals

3.6 Monthly Maintenance Checklist Table

Section 4: Step-by-Step Practical Mechanical Maintenance For TASACA Bikes

4.1 Drivetrain Care (Most Critical For Mid-Drive Models)

1. Deep Cleaning Process

• Remove heavy mud with soft brush and bike-specific degreaser; avoid spraying degreaser onto brake rotors.
• Rinse lightly with low-flow water, fully dry all metal components with microfiber rags.

2. Lubrication Rules For Off-Road

• Dry lube for dusty summer trails; wet lube for muddy, wet forest rides.
• One drop per chain roller, rotate rear wheel to spread evenly, then wipe excess lube to stop mud buildup.

3. Wear Inspection

• Use a chain checker tool; replace chain once it hits 0.75% stretch to prevent damaging cassette teeth. Worn shark-fin shaped sprockets require full drivetrain swap.

4.2 Hydraulic Brake System Maintenance

• Pad Inspection: Replace friction material thinner than 1.5mm. Oil/grease contaminated pads cannot be reused — swap immediately.
• Rotor Care: Wipe rotors with isopropyl alcohol to eliminate brake squeal from mud residue. Check for deep scoring or warping when spinning wheels.
• Caliper Centering: Loosen caliper mounting bolts, squeeze brake lever fully then retighten bolts evenly to eliminate brake rub.

4.3 Suspension Upkeep For Jumps & Rough Trails

1. Post-Ride Wiping Rule


   Always wipe front fork and rear shock stanchions after every ride. Mud scratches oil seals, causing slow oil leaks that ruin damping performance.
2. Sag Adjustment Guide


   Set rider sag to 25–30% of total suspension travel for family trail riding (T500-V58); 20–25% for T500 Pro race training for firmer jump absorption.
3. Seal Repair Signals


   Oil streaks on stanchions mean damaged dust seals — service at professional off-road shop to avoid complete shock failure mid-trail.

4.4 Tire & Wheel Maintenance

• Pressure Tuning: Lower tire pressure for muddy/rocky trails for better grip; increase pressure for hardpack dirt roads to extend tire life.
• Wheel Truing: Minor wobbles can be fixed with a spoke wrench; heavy warping requires professional truing service.
• Spoke Check: Squeeze paired spokes; any loose tone means immediate adjustment to prevent rim deformation.

4.5 Frame & Fastener Inspection

Section 5: Electrical System & 52V Battery Core Care (Maximize Lifespan)

5.1 Charging Best Practices

1. Cool Down Rule: Never charge immediately after intense riding — wait 30–60 minutes for battery temperature to return to ambient.
2. 20–80 Daily Rule: For casual T500-V58 family rides, recharge once capacity drops to 20–30%, stop charging at 80% to reduce cell fatigue. Only fully charge to 100% for long-distance cross-country trips on T500 Pro.
3. Charging Environment: Charge indoors between 60°F–77°F (15°C–25°C). Never charge in direct sunlight, freezing garages or hot vehicle trunks.
4. Official Charger Only: Use original TASACA charger exclusively; third-party chargers damage BMS protection and void warranty.

5.2 Long-Term Battery Storage (Over 4 Weeks Without Riding)

1. Adjust charge level to 40–60% before storage — fully empty or full charge accelerates permanent capacity loss.
2. Remove battery from frame and store in dry, climate-controlled indoor space away from moisture and extreme heat/cold.
3. Recheck charge every 2–3 months; top back up to 40–60% if self-discharged too low.

5.3 Motor & Controller Care

• Do NOT disassemble sealed motor or controller housings — this voids all brand warranty and creates electric hazard.
• Clean exterior motor casing with damp cloth only; high-pressure water penetrates cooling vents and ruins internal wiring.
• Clear mud debris from motor cooling slits weekly to avoid overheating during steep hill climbs and race training.

5.4 Wiring & Display Maintenance

• Monthly trace all cables from handlebar LCD to motor/battery; trim loose zip ties and fix rubbing wires that cut insulation over time.
• Clean display screen with soft dry cloth only — harsh cleaners scratch the readout, blocking speed/mode data while riding.
• Coat electrical connectors with thin dielectric grease in rainy/muddy seasons to stop corrosion from trail moisture.

Section 6: Essential Home Workshop Tools For TASACA Owners

6.1 Basic Daily Maintenance Kit (All Riders Must Own)

• Microfiber cleaning cloths, bike-specific degreaser
• Dry & wet off-road chain lube
• Tire pressure gauge, plastic tire levers
• Metric hex/ Torx wrench set (T25 for frame bolts)
• Chain wear checker tool, soft detail brushes for mud removal
• Isopropyl alcohol (for brake rotor cleaning)

6.2 Advanced Service Tools (Enthusiast / T500 Pro Race Riders)

• Low-range torque wrench (2–15Nm for sensitive frame hardware)
• Bike work stand for full drivetrain service
• Spoke wrench for wheel truing
• Air compressor (30PSI max for blowing electrical mud out)
• Multimeter for battery voltage testing

6.3 Professional-Only Services (Do Not Attempt At Home)

• Hydraulic brake fluid bleeding
• Suspension fork/shock oil replacement & seal service
• Controller BMS fault code diagnostics
• Frame bearing (headset/swingarm) full overhaul
• Motor internal inspection (sealed factory unit)

Section 7: Common TASACA Electric Dirt Bike Troubleshooting

7.1 No Power / Intermittent Cutout

1. Check battery fully locked into frame cradle, wipe dirty charging contacts
2. Inspect throttle wiring connector for mud corrosion
3. Confirm brake cutoff levers fully reset (stuck brake sensor kills motor power)
4. Power cycle: Remove battery for 5 minutes, re-install and reboot display

7. 2 Slow Acceleration / Reduced Top Speed

1. Switch LCD back to higher speed mode (T500-V58 has youth speed lock)
2. Check motor vents clogged with mud causing thermal power limiting
3. Inspect battery charge level below 20% triggers power reduction

7. 3 Chain Noisy / Skips Under Torque

1. Degrease and re-lube dry, mud-caked chain
2. Measure chain stretch; replace if worn beyond 0.75% threshold
3. Check derailleur pulley wheels packed with trail mud

7. 4 Suspension Leaks / Harsh Ride

1. Wipe stanchions and inspect oil residue (sign of failed dust seals)
2. Recalibrate rider sag to match your weight
3. Clean mud build-up between shock linkage arms

Section 8 Final Longevity & Safety Recommendations

1. Never pressure wash your TASACA electric dirt bike. High-pressure water forces mud and water past motor, battery and suspension seals leading to expensive electrical failure. Use only damp cloths and low-flow hose rinses.
2. Separate maintenance habits by bike model: T500 Pro for EX3 Class training requires bi-weekly drivetrain and suspension checks; T500-V58 family bikes follow standard weekly routines.
3. Join #RideWithTasaca monthly TikTok challenge to share your bike maintenance tips and off-road riding footage, connect with other TASACA owners for shared care experience.
4. Schedule annual professional full service once per riding season to catch hidden frame, battery and suspension wear invisible to casual visual checks.
